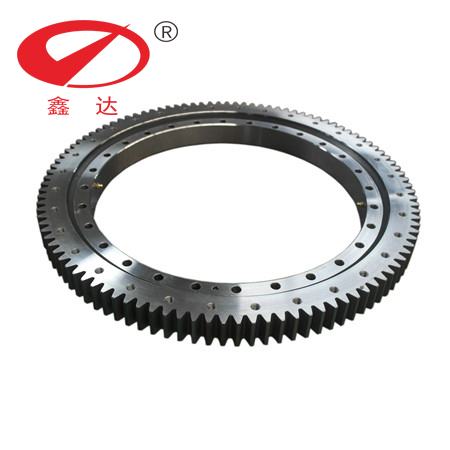

06-0734-00 four point contact ball Slewing ring bearing

06-0734-00 Slewing ring bearing Specifications

Type of raceway structure Single raceway slew bearing
Max Outer diameter 886mm
Min Inner diameter 610mm
Overall height 85mm
External bolt circle diameter 872mm
Internal bolt circle diameter 658mm
Module 8mm
Tooth Number 108
Theoretical Weight 156kgs


Product type advantages

Light slewing bearing mainly includes the external ring & internal ring, the grease fittings, the sealing belt, the spacers, the load plug and the taper pin, the characteristics: the internal ring and the external ring are both L-shaped; The flank surface of ring is provided with a grease cup, steel balls is assembled between the external ring and internal ring on integration. each ball is separated by spacer, the steel balls and the spacers are installed through the load plug, and the taper pin to protect the ball running. Light type profile slewing bearing has the same structure with general slewing bearing , it features in weight , swivel flexible .

Order advantage

Our advance for this order:

Fast Delivery

Best Quality

Good Price

Material:42CrMo4 , 50Mn, 42CrMo, 40Cr, S48C

Customized order,OEM/ODM services

Passed ISO9001 Certificate

Special designs available

What are the types of Slewing Bearings VSA200414-N ?

INA Slewing Bearings Manufacturing Service .


Construction machinery, such as tower cranes, excavators, mobile cranes, other types of cranes, piling machines, and truck-mounted concrete pumps, etc.  metallurgical and mining equipments, rock drilling machine, crushing machine

Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:1 sets


Delivery time:Negotiation

Other similar models

We also have model VSA200544-N,VSA200644-N,VSA200744-N,VSA200844-N,

VSA200944-N,VSA2001094-N,looking forwarder your inquire.
