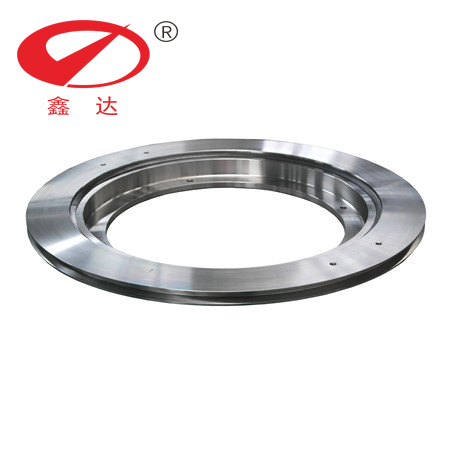

Good Quality 230.20.1000.013 standared series KD210 Bearing

230.20.1000.013 standared series KD210 Bearing Specifications

Standared series KD210
Max Outer diameter 1198mm
Min Inner diameter 984mm
Overall height 56mm
External bolt circle diameter 1170mm
Internal bolt circle diameter 1012mm
Theoretical Weight 61.9kgs


Details

Product type advantages

Standard bearing type 21 has the same structure with general slewing bearing , it features in weight , swivel flexible .mainly includes the external ring & internal ring, the grease fittings, the sealing belt, the spacers, the load plug and the taper pin, each ball is separated by spacer, the steel balls and the spacers are installed through the load plug, and the taper pin to protect the ball running.



Order advantage

Material:42CrMo4 , 50Mn, 42CrMo, 40Cr, S48C

Customized order,OEM/ODM services

Passed ISO9001 Certificate

Special designs available

4Q" business principle

Quality products, Quality service, Quality people, Quality price.

"Customer First, Service Foremost"

Application

Applied Fields

Slewing bearingsare extensively applied in such industries as metallurgy, vessel, oil, chemistry, mine, coal, hydroelectric power, port machinery, heavy machinery and aerospace or some other fields.

Regular application areas:

Mine machine, port hoisting machine, port oil transfer equipment onshore and offshore crane,excavator,concrete machine,paper machine, plastic and rubber machine, weave machine, steel plant, electronic power plant, wind power generator, other construction and industry machines or equipment.



Other similar models

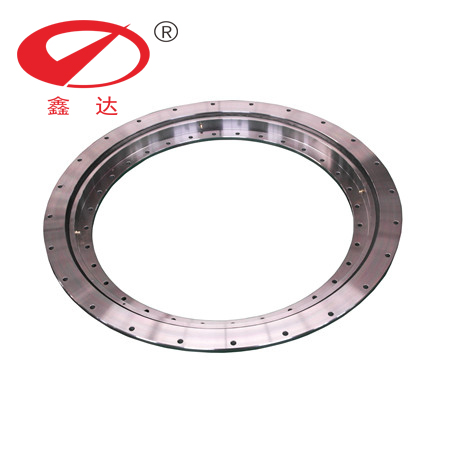

Bearing ungeared:

230.20.0400.013(typ 21/520.0),

230.20.0500.013(typ 21/650.0)

,230.20.0600.013(typ 21/750.0)

,230.20.0700.013(typ 21/850.0),

230.20.0800.013(typ 21/950.0),

230.20.0900.013(typ 21/1050.0)

,230.20.1000.013.(typ 21/1200.0)
